CNC machined aluminum mold for 4" cocahoe shad production

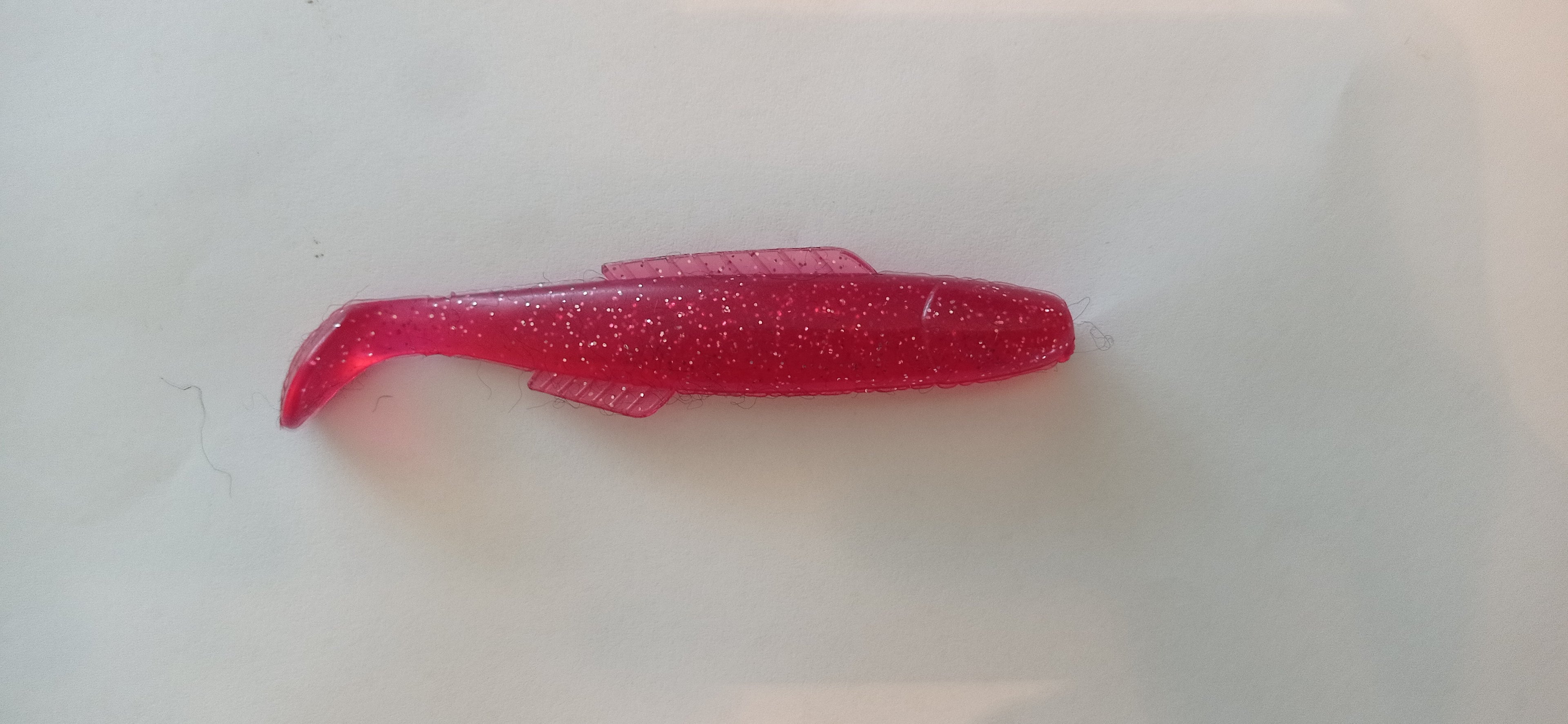

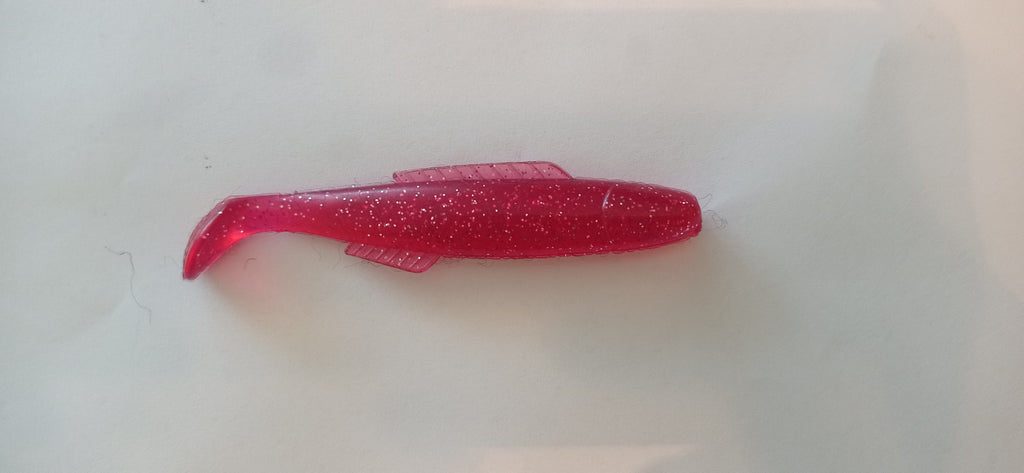

Professional CNC machined aluminum mold designed for producing 4" Cocahoe Shad soft plastic fishing lures.

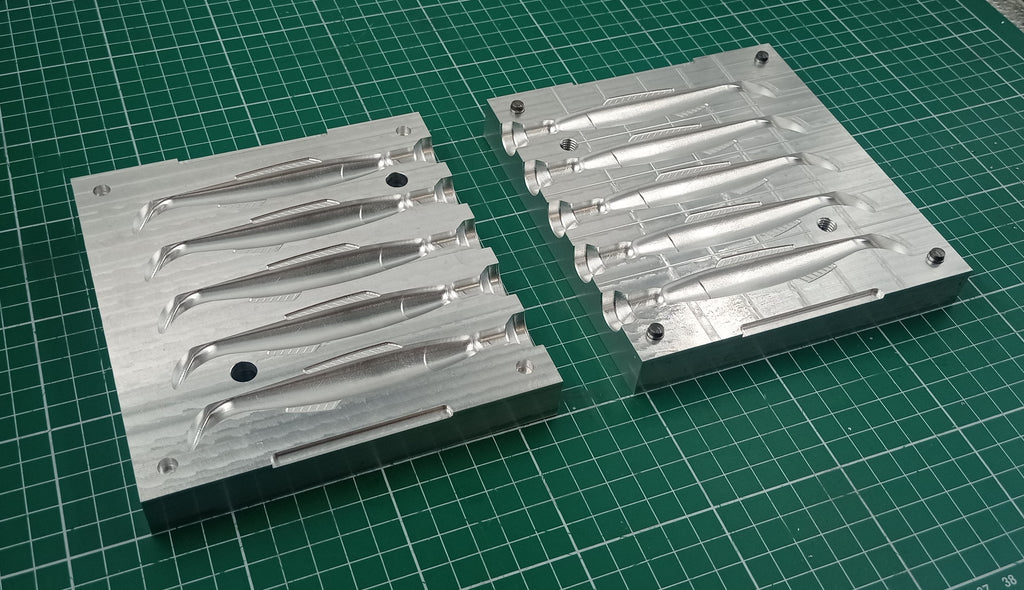

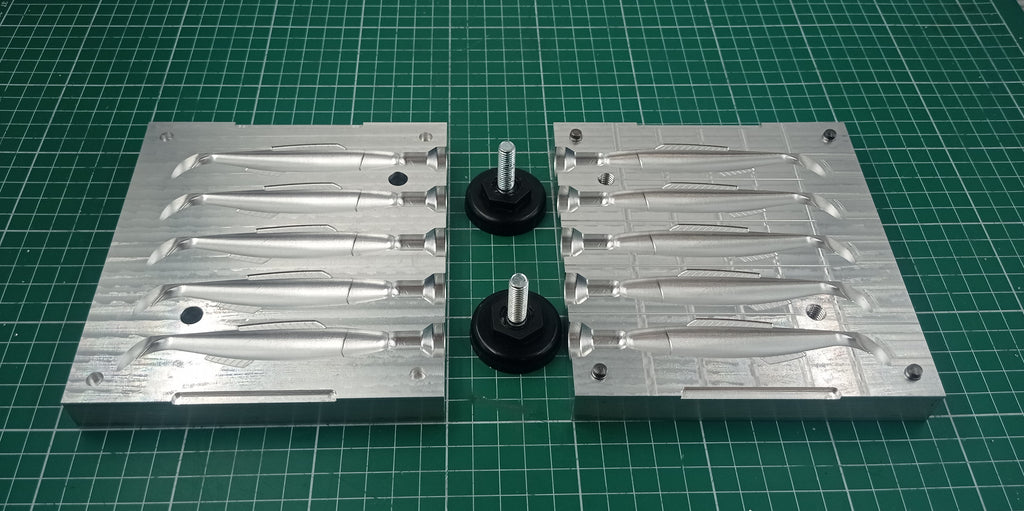

This precision 5-cavity injection mold is manufactured from high-quality 6082 aluminum and is designed for efficient soft plastic lure production. The multiple-cavity design allows you to produce five lures per injection cycle, making it suitable for both individual lure makers and small-scale production.

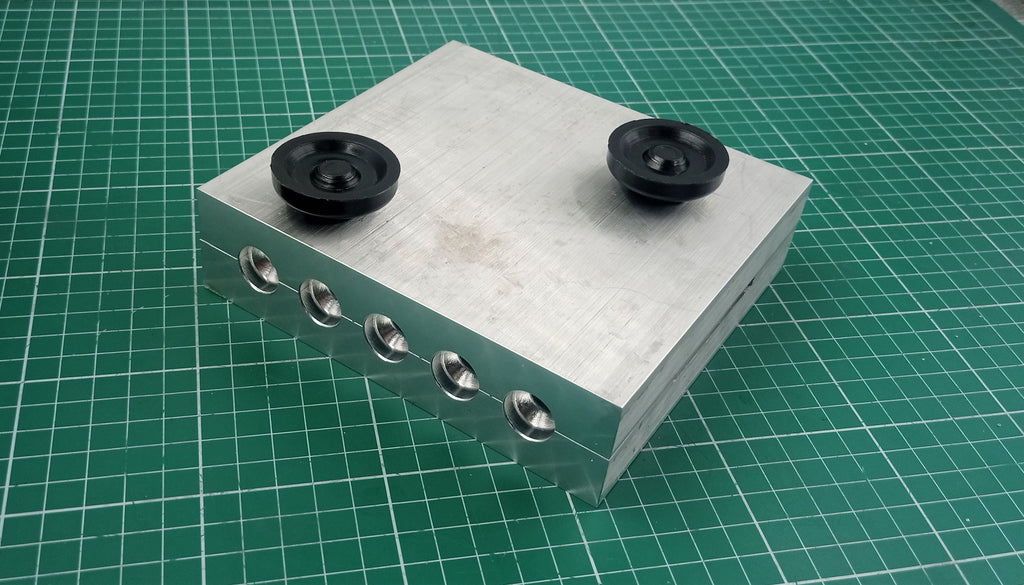

The injection ports are designed for a 5/8" nozzle diameter, providing compatibility with standard plastisol injection equipment using this nozzle size.

Features

• Designed for 4" Cocahoe Shad soft plastic lures
• 5 cavities for efficient production
• CNC machined from 6082 aluminum
• Injection ports for 5/8" nozzle diameter

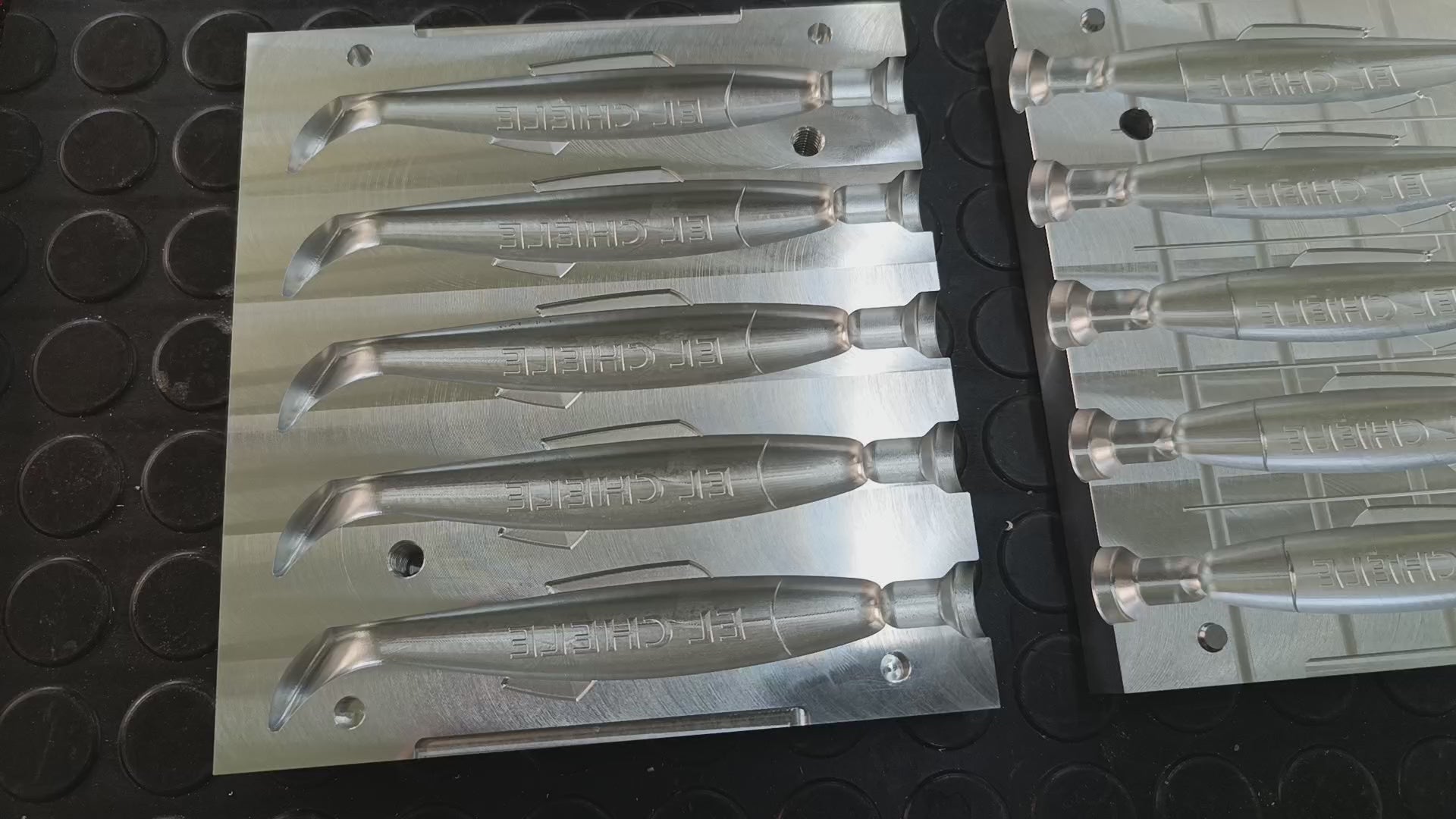

• Precision-machined lure cavities
• Consistent dimensions and repeatable production
• Durable aluminum construction
• Suitable for repeated soft plastic injection molding
• Manufactured to order

Mold Dimensions

Closed mold dimensions:

• 40 × 150 × 140 mm

Customization Available

Need a different lure size, cavity count, injection port configuration, or a completely custom lure design?

Custom fishing lure molds are our specialty.

We can manufacture precision CNC machined aluminum molds according to your:

• CAD files
• 3D models
• Technical drawings
• Existing lure samples
• Custom design concepts

Cavity count, lure dimensions, injection ports, and other mold features can be customized according to your requirements.

Manufacturing & Shipping

Every mold is CNC machined to order to ensure precision and consistent quality.

• Precision CNC machining
• Manufactured from 6082 aluminum
• Made to order

Manufactured by PrototypingNS – Precision CNC Machining & Custom Aluminum Fishing Mold Manufacturing.
