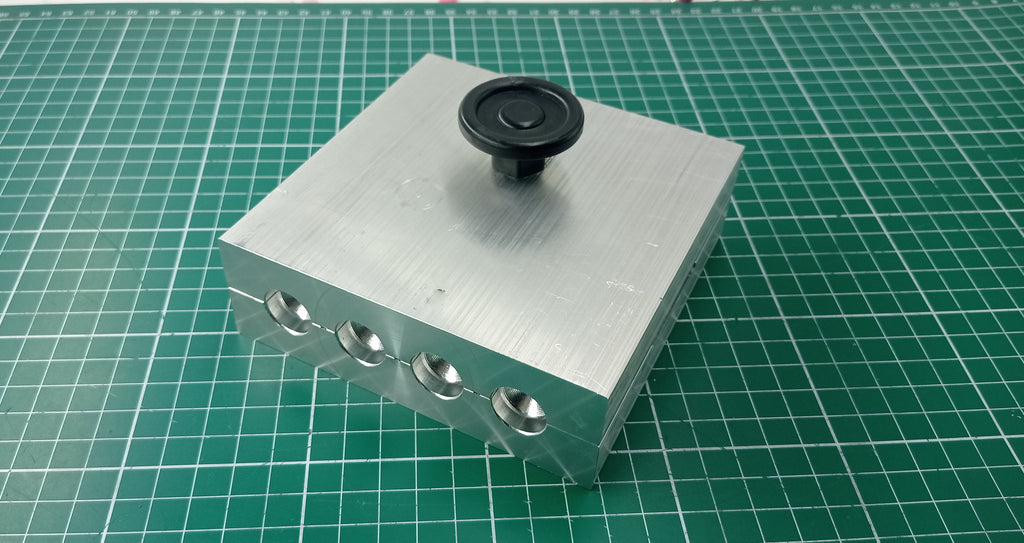

CNC machined 4 cavity aluminum mold for 90mm swimbait lure production

Precision CNC-machined aluminum mold designed for producing 90 mm minnow shad soft plastic fishing lures.

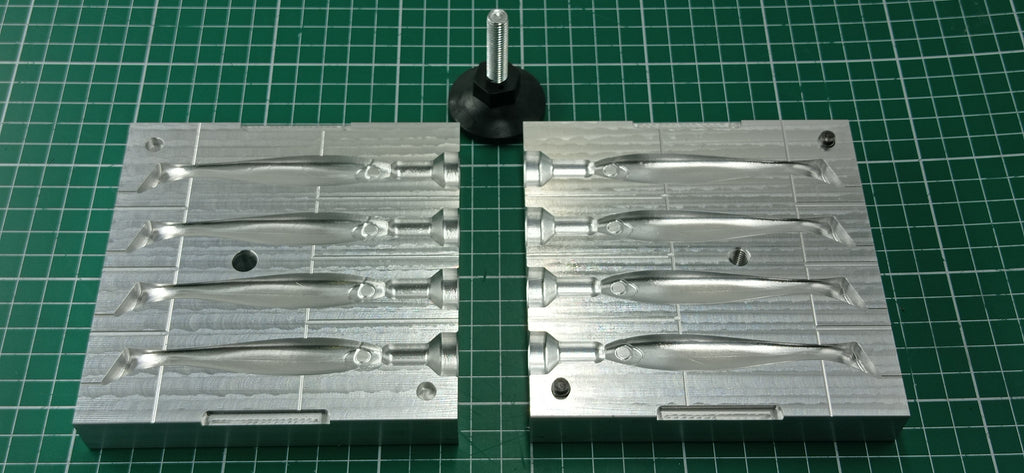

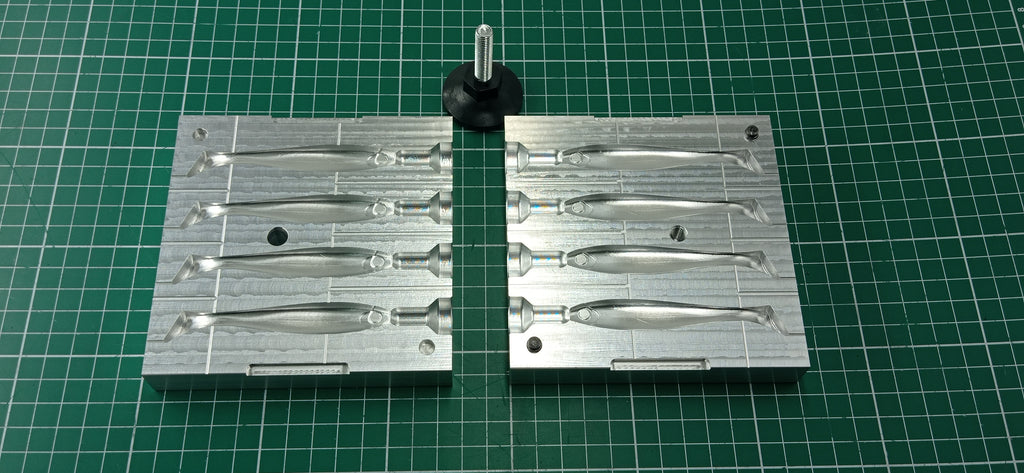

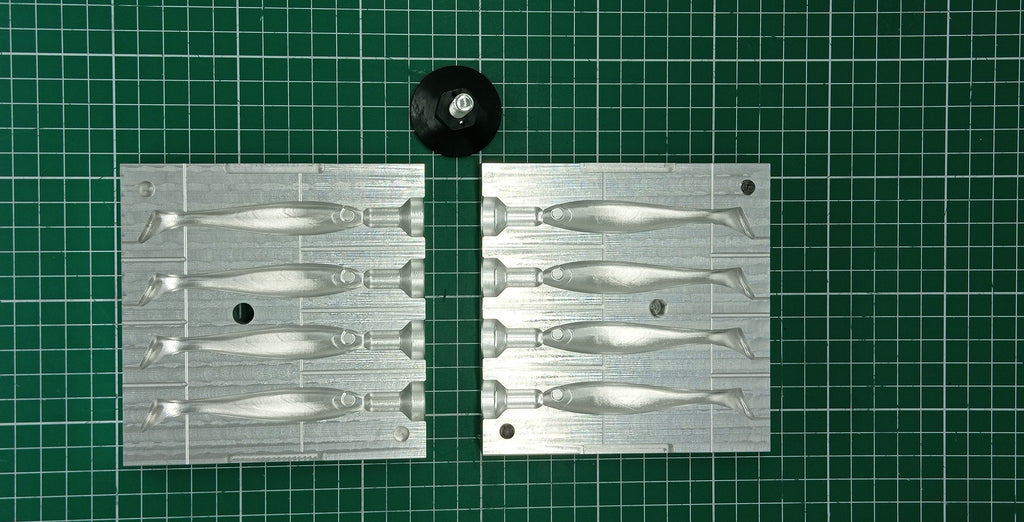

This professional 4-cavity injection mold allows you to produce four lures per injection cycle. The mold is manufactured from two 20 mm thick aluminum blocks, providing excellent heat transfer and consistent temperature distribution during soft plastic injection.

The lure produced with this mold features a streamlined minnow/shad profile designed to provide natural movement in the water at both slow and faster retrieve speeds.

Mold Features

• Designed for 90 mm minnow shad soft plastic lures
• 4 cavities for efficient production
• Precision CNC-machined aluminum construction
• Made from two 20 mm thick aluminum blocks
• Excellent heat conduction for consistent injection results
• Precision-machined lure cavities
• Suitable for professional and high-volume lure production
• Durable construction for repeated use
• Made to order

Lure Design

The 90 mm minnow shad profile combines a streamlined body with a shaped tail section designed to produce natural swimming action.

The resulting soft plastic lure is suitable for a variety of fishing applications, including bass, pike, and perch, and performs well in both moving and still water.

Production & Shipping

Each mold is CNC machined to order to ensure precision and consistent quality.

Once production is completed, the mold is shipped via DHL Express with tracking.

Custom Fishing Lure Molds

Need a different lure size, cavity configuration, injection port, or completely custom design?

We manufacture custom CNC aluminum soft plastic fishing lure molds according to your requirements.

We can work from:

• CAD files
• 3D models
• Technical drawings
• Dimensions
• Sketches
• Existing lure samples

Contact us with your requirements for a custom quote.

Please note: This listing is for the aluminum mold only. Injector and finished soft plastic lures shown in the photos are for demonstration purposes only and are not included with the mold.
